| Specification | Date: 2/11/2025 |
| Inventory #: | X5368AC |

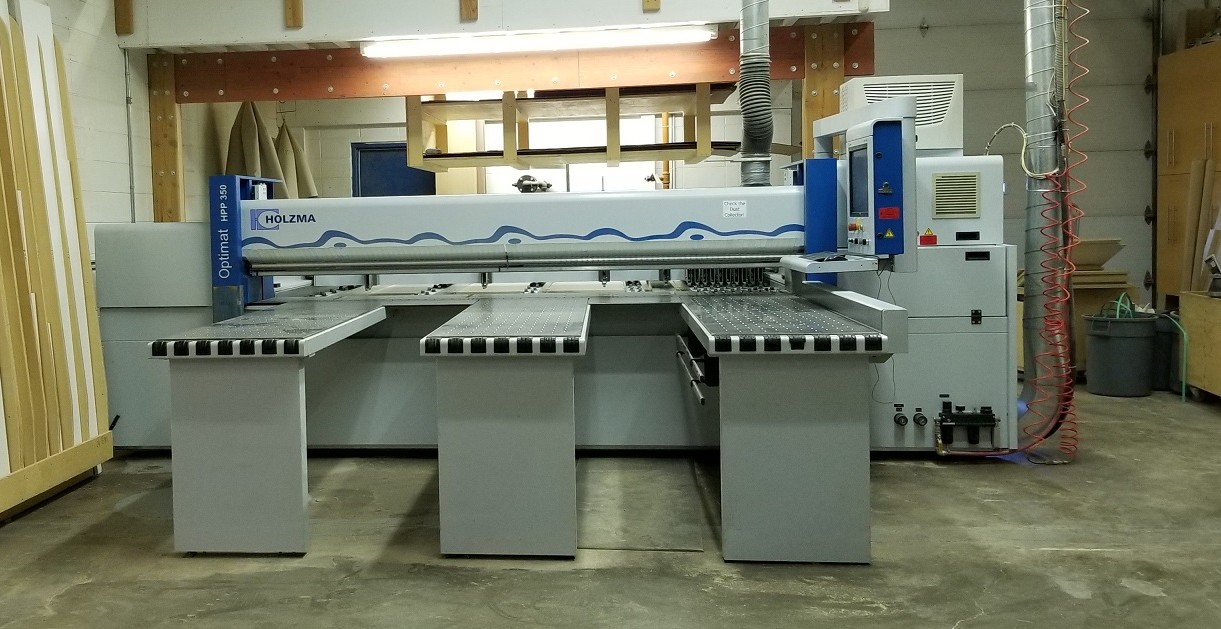

| Machine Type: | Saws - Panel Beam |
| Manufacturer: | Holzma |
| Model: | HPP350 |
| Year: | 2005 |
| Region: | Western Canada |
| Voltage: |
220/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter. |
| Condition: | Very Good |
| Machine Capacities: | This saw can rip and crosscut sheets with a maximum length of 121” either way The main motor is 18 HP and the scoring motor is 2 HP Blade projection is 3 1/8” high Main saw blade diameter: 350 mm Scoring blade is conical and has a 180 mm diameter Motorized adjustment of the scoring saw from the Cadmatic control panel. Both the main blade and the scoring blade can be changed quickly with the patented “power loc” system. Saw carriage speed adjustable from 5 – 130 m/min. Program fence speed is 80 m/min Program fence is outfitted with 9 grippers Upon positioning of the saw carriage the side aligning unit raises program controlled through the cutline. The pressure for the side aligner is adjustable. This saw comes with 3 air tables that are 650 x 2160 mm long; it also has a laser light at the cutline. An air conditioning unit is installed when the temperature goes above 35 degrees The monitor is 17” flat screen TFT |
| Sales Price: | CALL FOR PRICING |
