| Specification | Date: 12/14/2025 |
| Inventory #: | X5404AC |
| Machine Type: | Dowel Machines |
| Manufacturer: | Accu System |

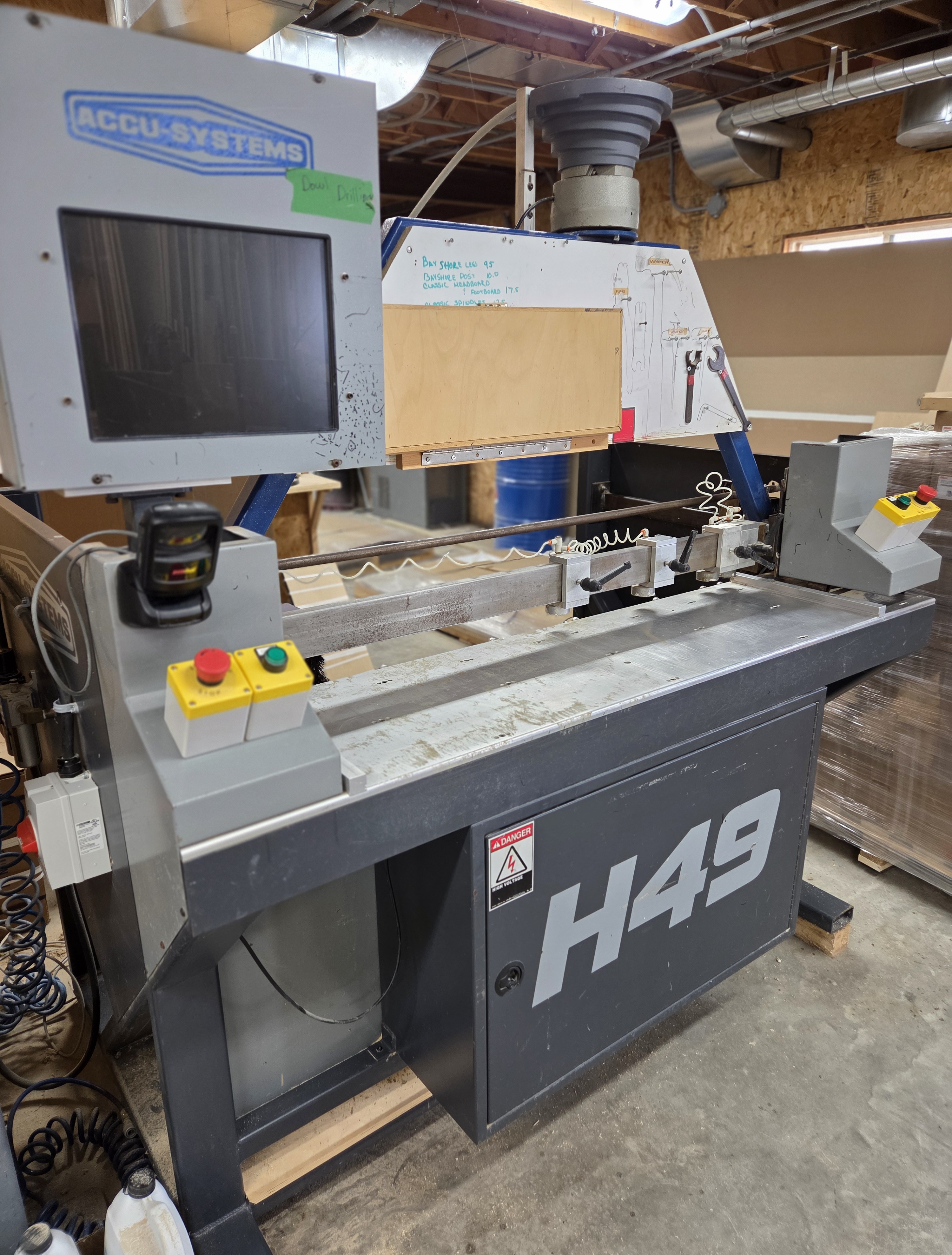

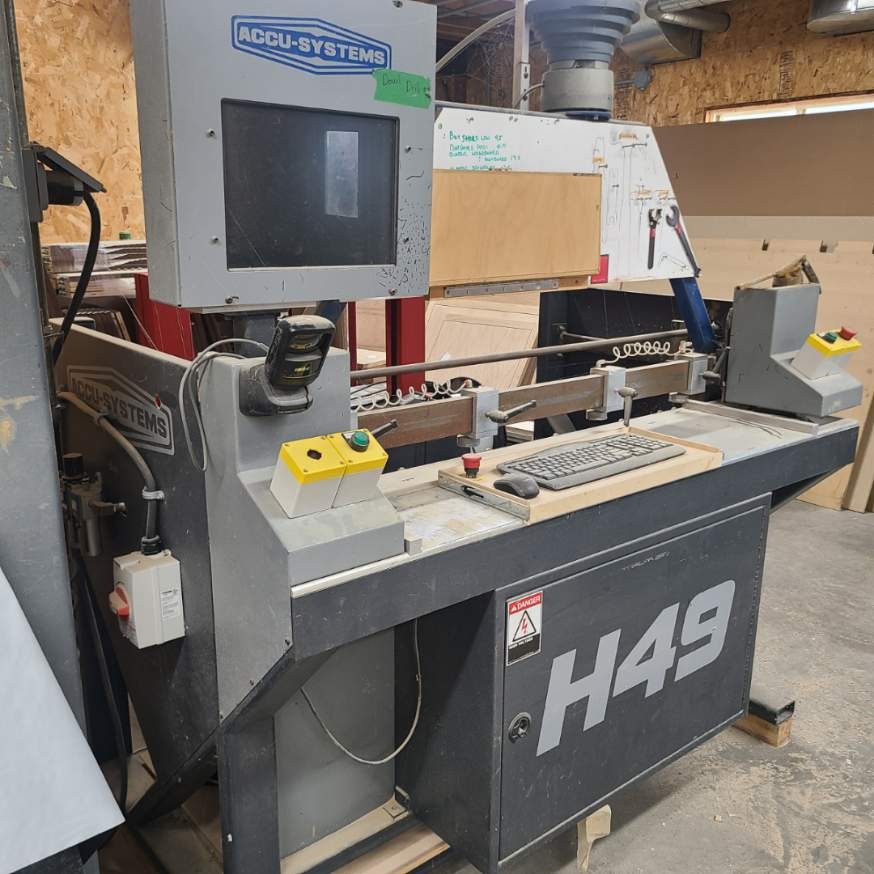

| Model: | H 49 Drill and Dowel 2012 |
| Year: | 2012 |
| Region: | Central Canada |

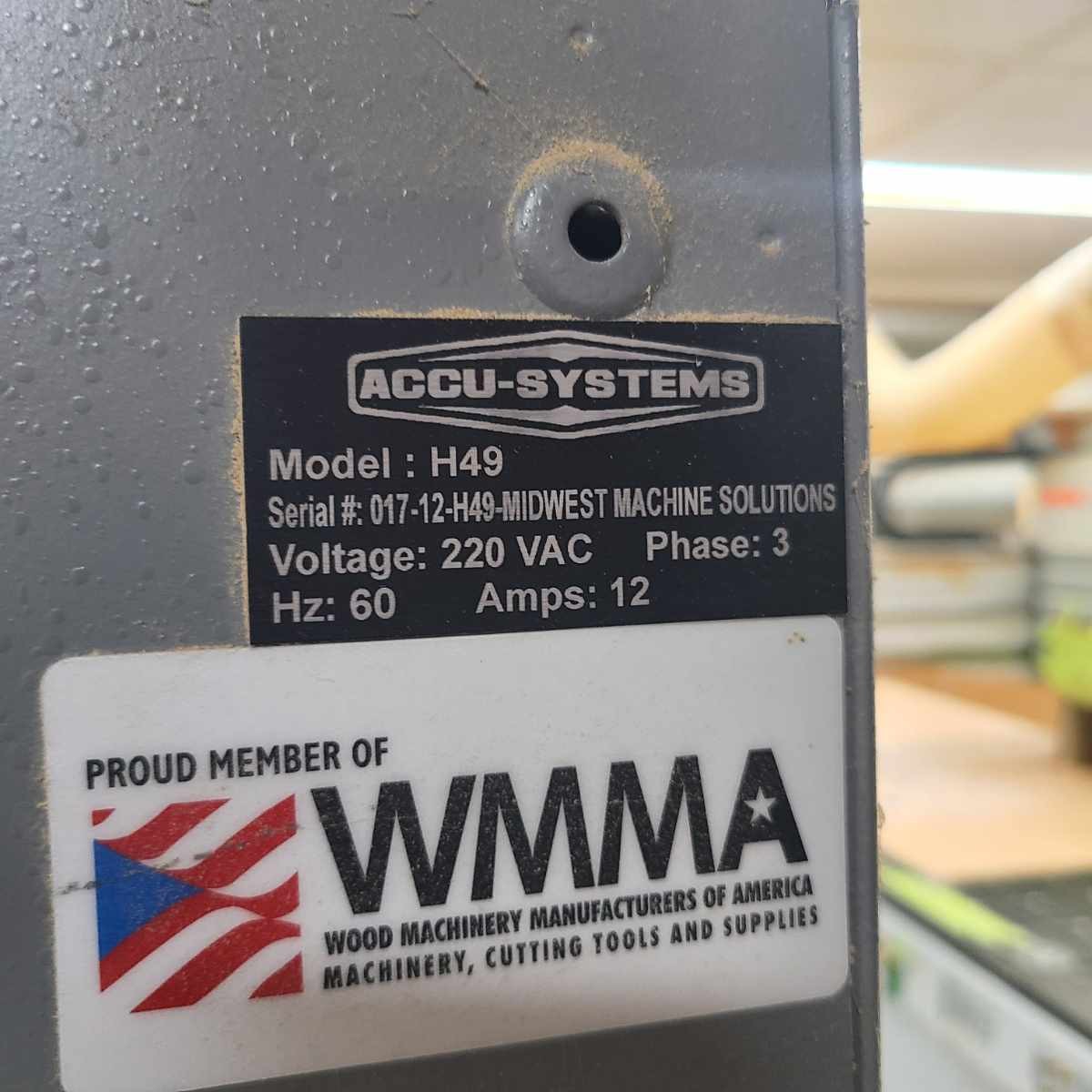

| Voltage: |
220/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter. |
| Condition: | Good |
| Machine Capacities: | Horizontal bore and dowel 49" wide worktable of 1/2" thick machined aluminum to ensure a true and reliable reference point 1 HP 18,000 RPM single spindle drill Cycle time of approx. 1-1/2 seconds for each bore glue and dowel insertion when the holes are spaced at 64 mm intervals (4) quick adjust vertical clamps Adjustable back fence 1/2" min. material thickness Glue inserter with water or glue capability "Direct Reject System" dowel inserter 8 mm dia. vibratory dowel bowl PC operator interface with 12" touchscreen 2 work zones allowing for pendulum processing The H-49`s operator interface has been designed to allow for quick programming at the machine Typically your operator can create and activate a new program in less than one minute |
| Sales Price: | CALL FOR PRICING |
