| Specification | Date: 4/10/2026 |
| Inventory #: | X5405AC |

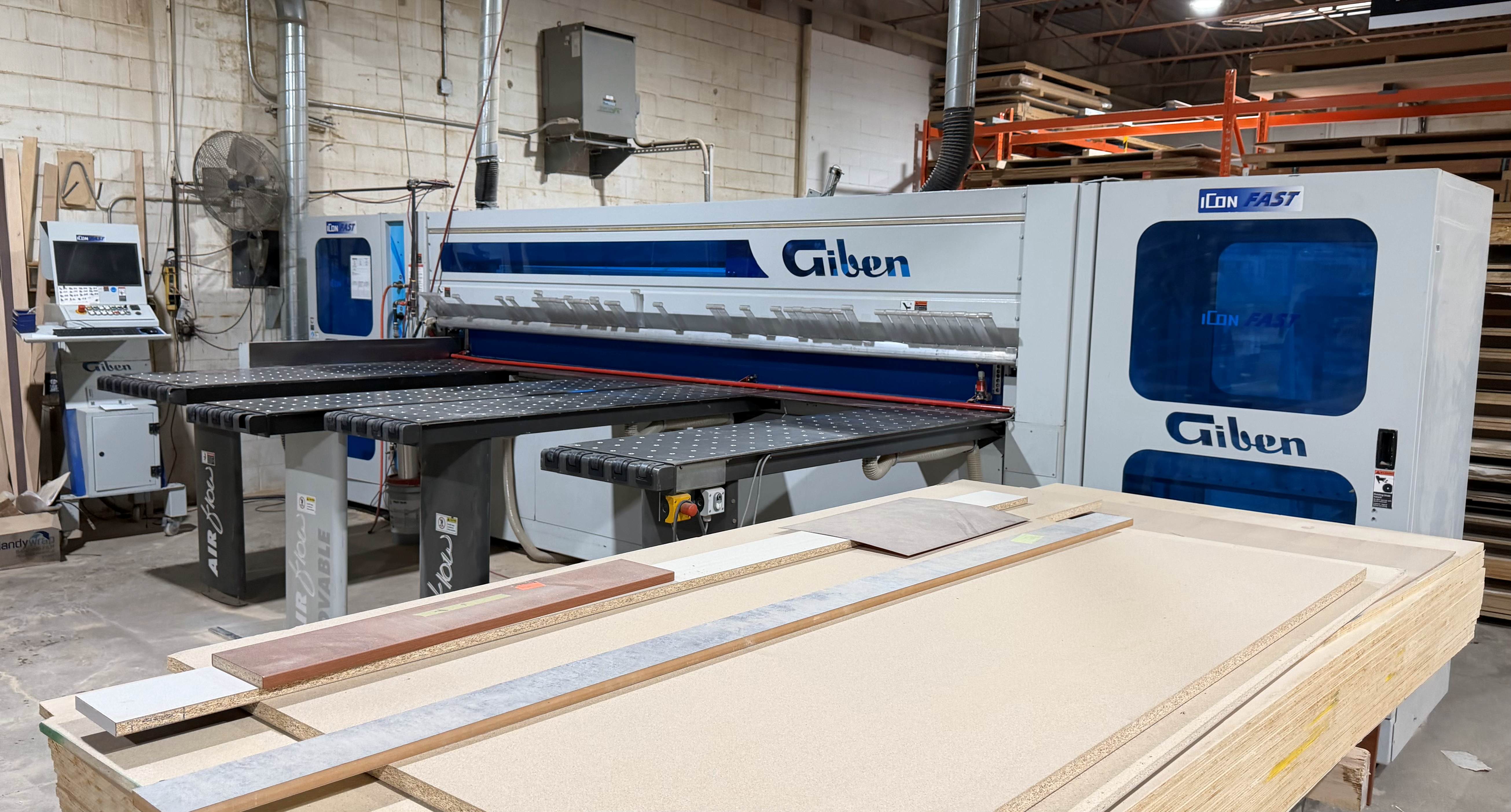

| Machine Type: | Saws - Panel Beam |
| Manufacturer: | Giben |
| Model: | ICON Fast SPLM XY |
| Year: | 2017 |
| Region: | Central Canada |
| Voltage: |
480/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter. |
| Condition: | Very Good |

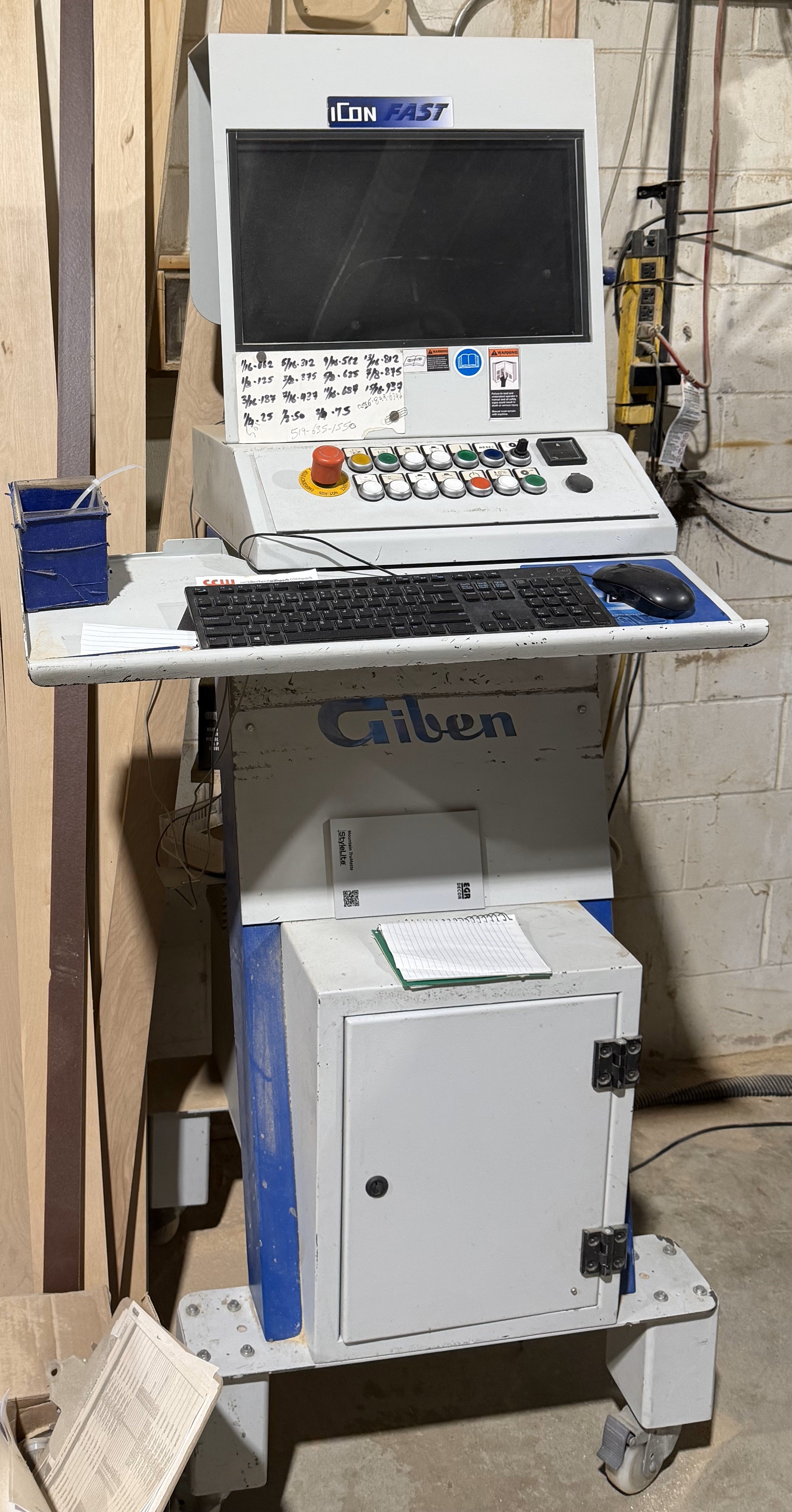

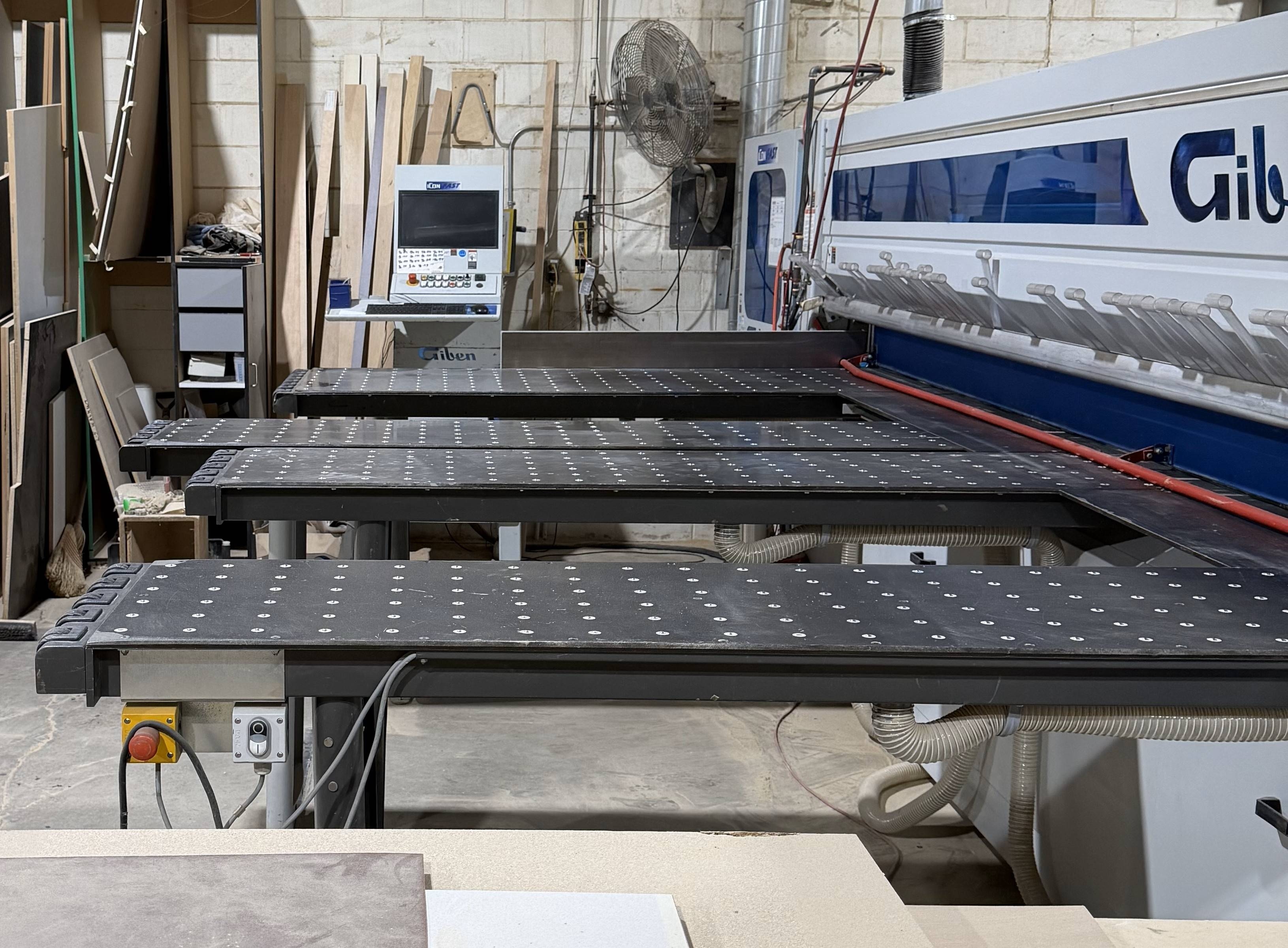

| Machine Capacities: | Maximum cutting length: 3800mm -Pusher stroke: 4100mm -Working table standard height: 950mm -Saw blade projection: 150mm -Main motor: 40 HP -Scoring motor: 2 HP -Main blade diameter: 530mm -Scoring blade diameter: 215mm -Saw carriage forward speed: 1-240 m/min -Saw carriage return speed: 240 m/min -Saw carriage traverse motor: linear -Double pressure beam -Four (4) 2000 x 510mm air tables, one (1) second from the fence) is moveable -Ten (10) roller profiles -Y cut with linear drives -Blade cooling by air jet -Inverter on main blade -Remote scoring adjustment -Remote start/stop on rip side -Automatic saw blade projection -Pusher travel: 3850mm -Pusher forward speed: 1-80m/min -Pusher return speed: 80m/min -Pusher motor: brushless -Side aligner stroke: 70-2200mm -Minimum strip width: 70mm -G-Vision controller on Windows 7 operating system -G-Vision on-board optimizer on the machine controller |
| Sales Price: | CALL FOR PRICING |
