| Specification | Date: 4/26/2026 |
| Inventory #: | X5422AC |

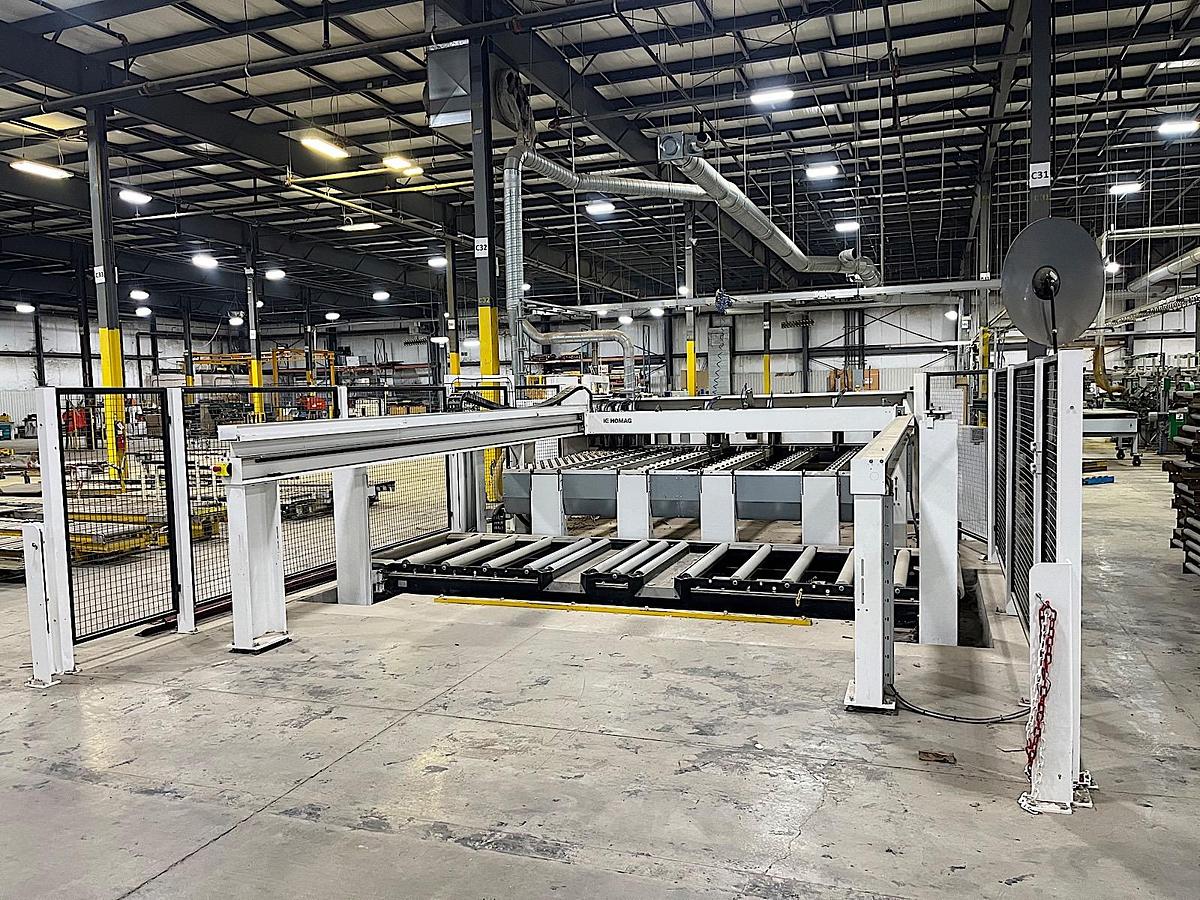

| Machine Type: | Saws - Panel Beam |
| Manufacturer: | Homag |
| Model: | SAWTEQ B-200 HPL200/38/16 Rear |
| Year: | 2021 |
| Region: | Central Canada |

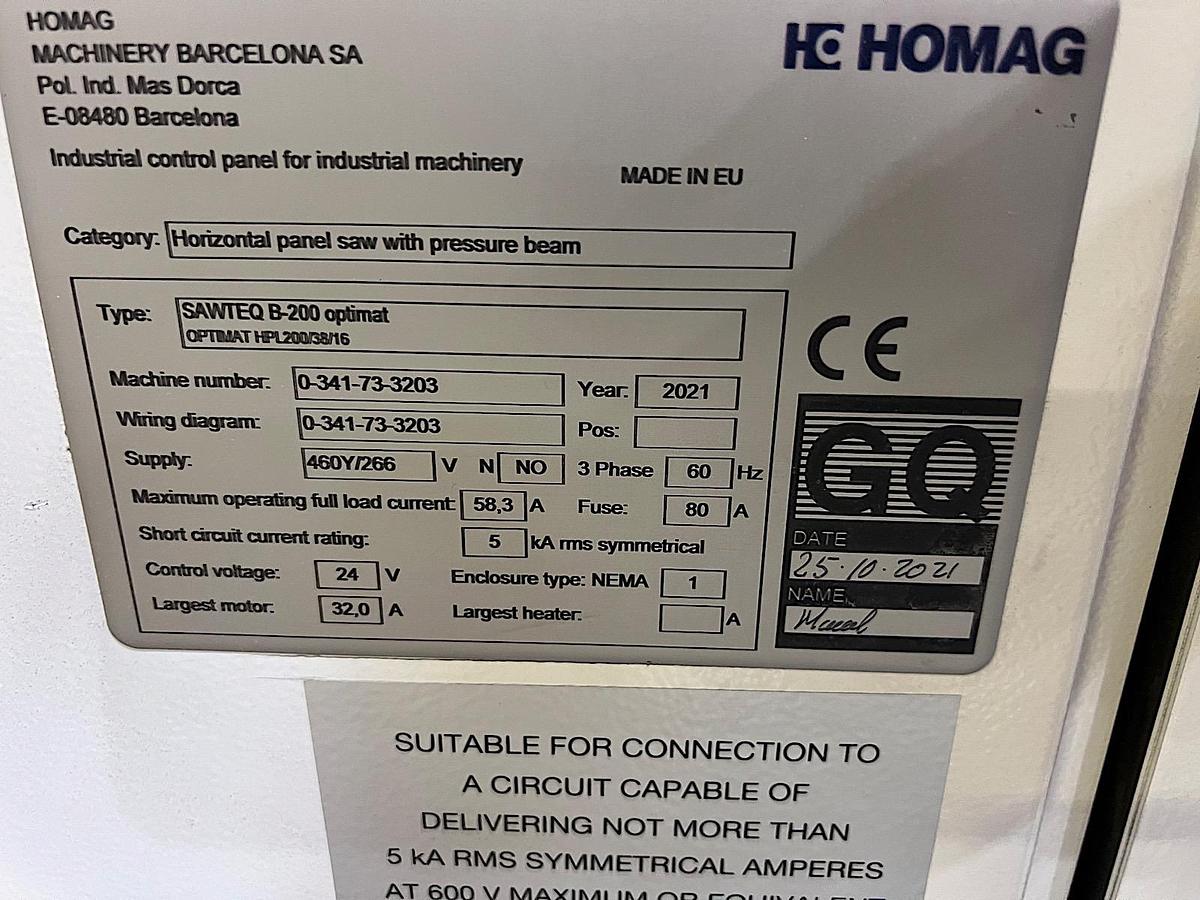

| Voltage: |
440/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter. |
| Condition: | Excellent |
| Machine Capacities: | Cutting Length (Rip Capacity): 149.6" (3,800 mm) Pull-Back / Cross-Cut Capacity: 145.6" (3,700 mm) Main Saw Blade Projection: 2-1/2" (65 mm) Main Saw Motor: 37.5 HP (28 kW) Scoring Saw Motor: 2 HP (1.5 kW) Saw Carriage Speed: Forward & Reverse up to 492 FPM (150 m/min) Program Fence (Pusher) Speed: Electronically controlled, up to 492 FPM (150 m/min) Max. Stack Height: Approx. 25.98" (660 mm) Control System: CADmatic with touchscreen monitor (scoring saw adjustment via control) Loading Type: Rear-load automatic (with lift table or stacking table for panel stacks) Features: High-precision cutting with powerful main and scoring saws Automatic pusher fence for efficient positioning Optimized for high-volume panel processing (wood, wood-based panels, etc.) Dust extraction ready Robust construction for reliable industrial use FOOT PRINT Est. at 19 ft X 23 ft. |
| Sales Price: | CALL FOR PRICING |
