| Specification | Date: 5/19/2026 |
| Inventory #: | X5436GK |
| Machine Type: | Planers - Thickness |
| Manufacturer: | SCM |

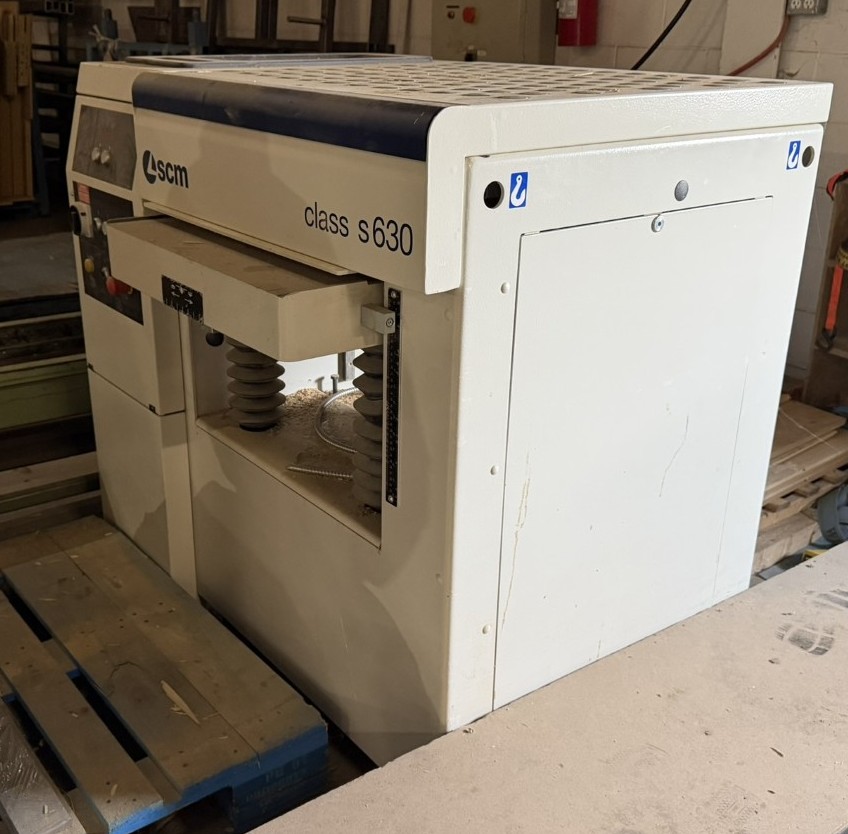

| Model: | Class 630 24 in planer spiral head. |
| Year: | 2018 |
| Region: | Central Canada |
| Voltage: |
600/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter. |
| Condition: | Good |
| Machine Capacities: | 24" Helical Head Machine type: Heavy-duty industrial thickness planer Planing width: 630 mm (24.8") Working height capacity: 3.5 – 300 mm (⅛" – 11¾") Table size: 640 x 1000 mm (25" x 39") Maximum stock removal: 8 mm (5/16") in one pass Minimum board length: 260 mm (10.25") Cutterhead diameter: 120 mm Cutterhead speed: 4500 RPM Feed speed: Variable 4–20 m/min (inverter controlled) Main motor: 7–11 kW (9.5–15 HP) depending on North American / option package Dust port: 150 mm (6") Weight: roughly 1,000–1,100 kg (2,200–2,400 lbs) depending on setup |
| Sales Price: | CALL FOR PRICING |
