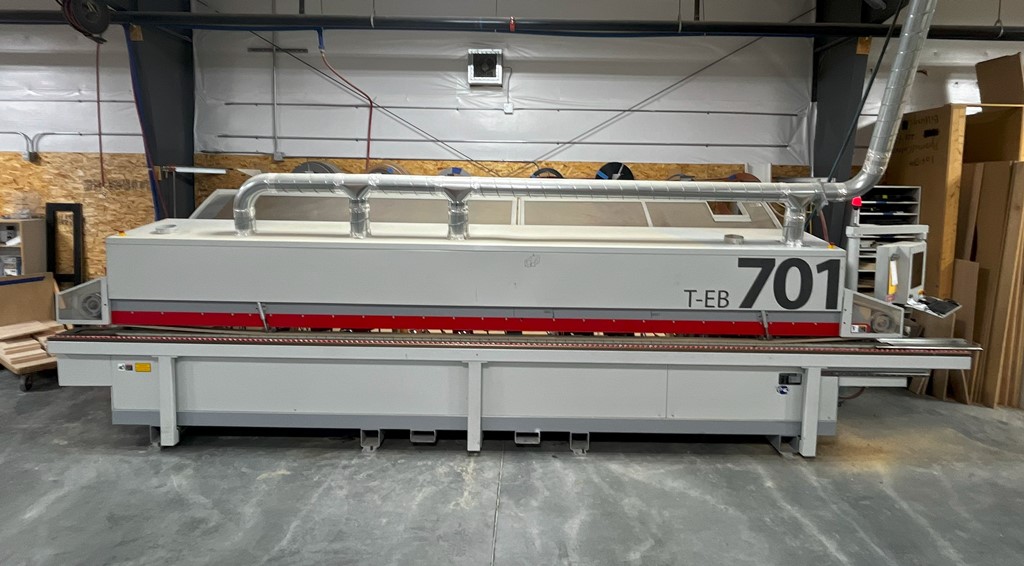

Turanlar T-EB 701

Machine Information Sheet Date: 5/28/2023
Inventory #: C5055TS
Machine Type: Edgebanders
Manufacturer: Turanlar
Model: T-EB 701
Year: 2017
Region: North West US
Voltage: 400/3/60
Can be transformed to required voltage for a nominal fee. Single phase available thru a phase converter.
Condition: Good
Machine Capacities: The T-EB-701 provides the complete solution for Edgebanding processes. Its perfect design and comprehensive units
contribute to meet all requirements for manufacturers looking for continuous output of edged product at an
affordable price.
With its modern functional design and strong structure this all helps in maintaining a trouble free machine. Its ease
of operational use due to the convenient PLC based controls and CE regulated safety features. The T-EB-701 perfectly
performs pre-milling, gluing, end cutting, top and bottom trimming, top and bottom corner rounding, grooving, radius
scraping and buffing processes. Its milling and trimming cutters are diamond tipped for extra-long life and comes with
automated glue feed system. Another key feature on this top end edgebander is it can store up to 40 different programs
in its PLC and these can then be automatically adjusted on the machine with the simple press of a button. Also due
to the fully automatic top pressure system belt the size of the pieces going through the machine can be reduced to a
minimum width of 70mm and minimum length of 100mm.
It comes with high frequency motors, electrical components and pneumatic systems all supplied by the most reputable
European manufacturers this ensures in guaranteeing quality production standards and a long service life.
The T-EB-701 operates at optional speeds between 15-20-25m/min. It can apply all common edging material (PVC,
ABS, Melamine, Veneer and Solid Wood etc.) to all types of panels up to 3mm of thickness with precision.

-Speed: 5-20-25 m/min
-Total electrical power: 22kW
-Four (4) different band feeder
-Pre-milling: 2x 3kw / 9000 RPM
-Pressure roller
-End cutting: 2x 0.37kW/12000 RPM
-Top and bottom milling: 2x 0.37kW/12000 RPM
-Corner rounding: 4x 0.37kw/12000 RPM
-Radius scraping
-Straight scraping
-Polishing solvent
-Buffing unit: 2x 0.55kw/1400 RPM
-Hot air blower
-IR lamp
-Grooving saw: 3.7kw/9000 RPM
-Working height: 910mm
-Solvent back and front
-Glue cleaning
-Dimensions: 7540mm x 1200mm x 1850mm
-Weight: 4800 kg

Contacts WW Machinery, Inc. sells pre-owned machinery on a first come, first served basis. Pre-owned machinery is not covered under any warranty or Government requirements. It is purchased "as-is - where-is, with all faults." Descriptions and specifications are to the best of our knowledge (some information is communicated via third party sources). It is strongly recommended that the machinery be inspected prior to purchasing to confirm the condition and specification. Additional charges such as crating and loading may apply.
